Solar PV Pull-Out Testing & Pile Testing Across Africa
Complete PV Foundation Testing, Test Pile Installation, Driveability Trials, Predrilling and POT Campaigns for Utility-Scale Solar Projects.
Local African mobilisation. International PV experience. Santana Construction Uganda, working in partnership with BayTex East Africa, provides complete test-pile installation, driveability trials, pull-out testing, predrilling, extraction and field reporting for international EPCs, developers and tracker manufacturers.
Management: Carles Santana – Director & Construction Manager of both companies
Base: Uganda / East Africa
Service Area: East Africa with project mobilisation across Africa
Core Services: Solar PV pull-out testing, test pile installation, driveability testing, lateral and compression testing, predrilling and pile extraction
Project Type: Utility-scale solar PV
Typical Clients: EPC contractors, tracker manufacturers, solar developers, IPPs, engineering consultants and mining companies
Experience: Uganda, Kenya, DRC, Zimbabwe, South Africa and Mali
Mechanised solar PV foundation installation using specialist ORTECO piling equipment.
One mobilisationInstallation, testing and reporting
A pull-out test (POT) campaign verifies how proposed steel foundations behave in actual site conditions before or during utility-scale PV construction. Subject to the client’s approved procedure, our scope can combine the equipment and personnel normally sourced from several subcontractors.
Foundation testing
Vertical pull-out / uplift testing
Lateral load testing
Compression testing
Inclined-load testing where specified
Load and displacement monitoring
Field execution
Test-pile and trial-profile installation
Driveability and ramming trials
Auger predrilling and pilot holes
Pile extraction and remedial works
Traceable field records and POT reporting
Testing is executed to the client, tracker manufacturer or engineer’s approved procedure. Foundation design or certification is included only when expressly defined in the contracted engineering scope.
Real Pull-Out Test Field Experience

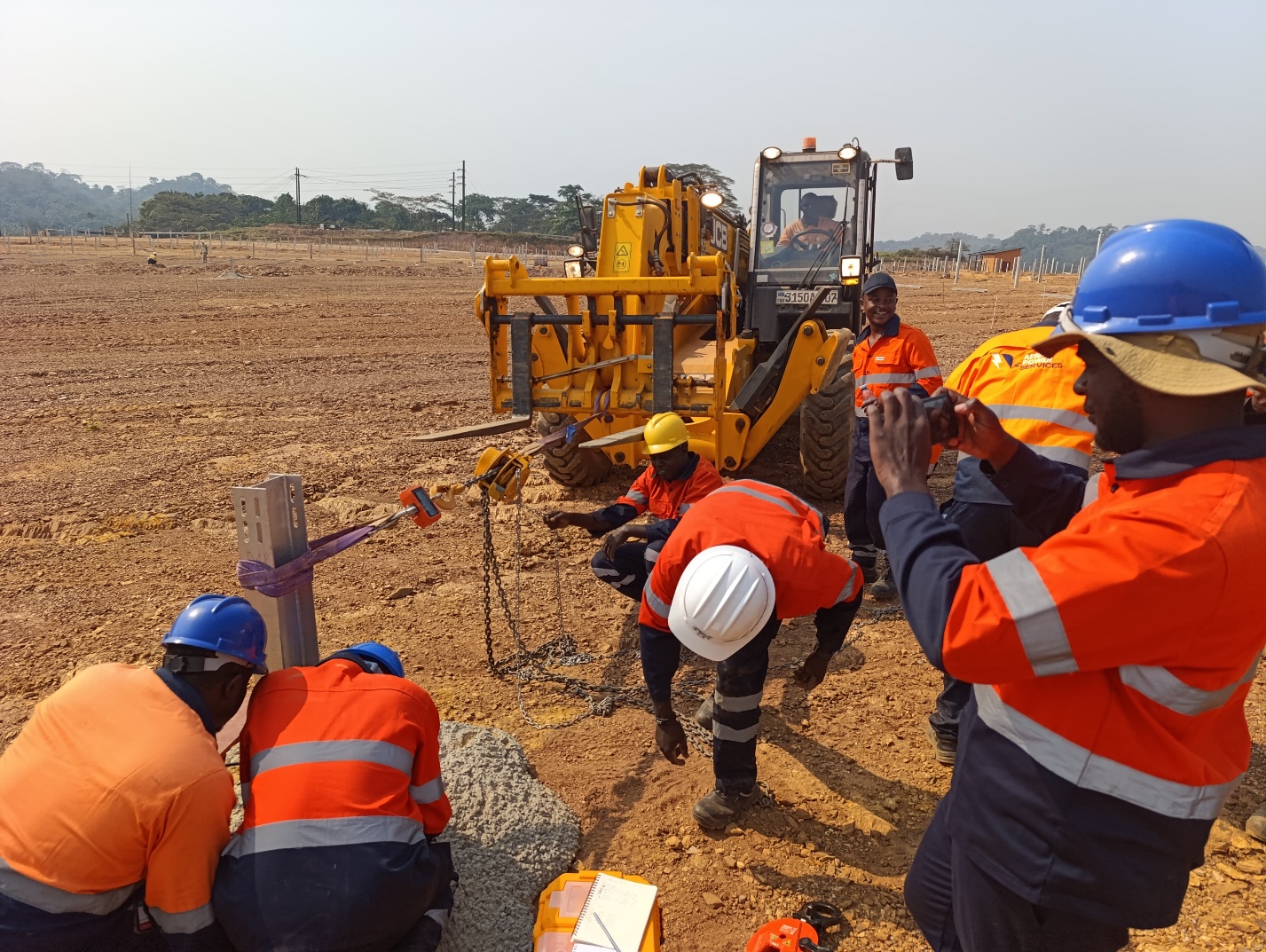

BayTex East Africa – Partner Experience: Kibali Mine Solar Project, DRC. The photographs below document genuine construction-stage traction, lateral-load and compression test setups using calibrated measuring equipment, controlled load application and displacement monitoring. Confidential readings and proprietary acceptance criteria are not published.

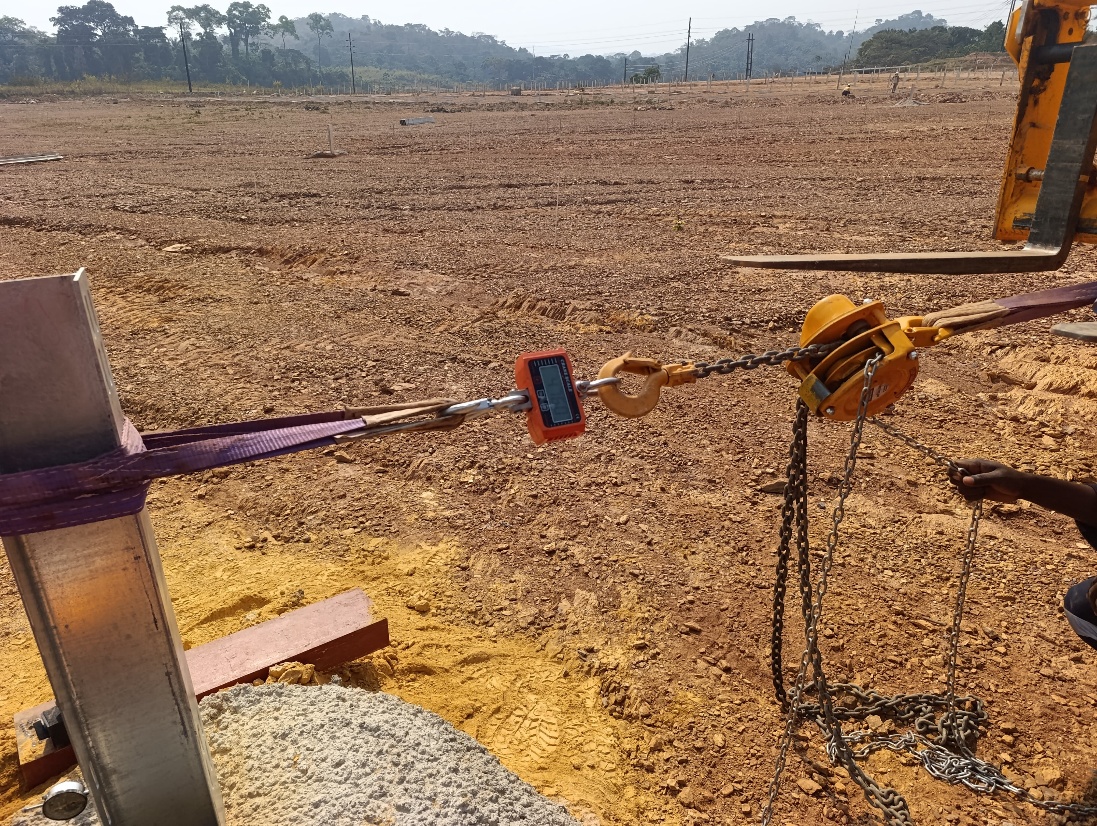

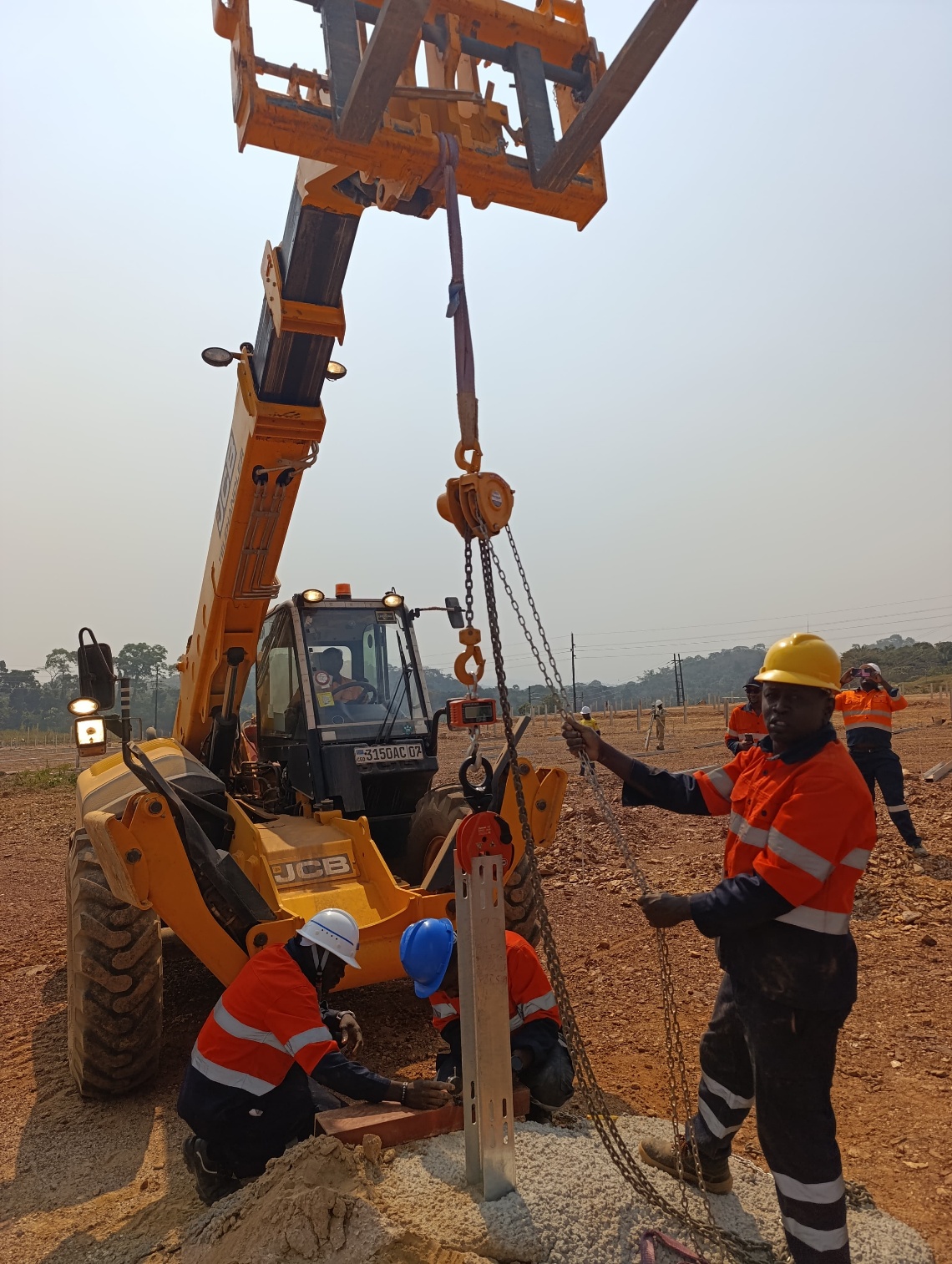

General field setup for a solar foundation load test.Load measurement and controlled tensioning arrangement.Chain block, connection system and digital load cell.Dial gauge and magnetic-base displacement monitoring.Field test team executing the approved procedure with PPE.Test-pile and production-pile installation capability.
What the Testing Establishes
POT and pile-load testing provide field data for the tracker supplier, EPC, foundation engineer and geotechnical consultant to assess pile/profile selection, embedment assumptions and construction performance. During each load step, the team records the applied load, holding period and corresponding movement. Pass/fail conclusions are reported only when the client supplies the applicable acceptance criteria.
PV Pile Driveability, Predrilling and Extraction
Driveability trials
Trial piles can document depth, driving time, refusal, difficult ground, deformation, installation observations and the suitability of proposed profiles and embedment depths.
Auger predrilling
Our auger capability supports pilot holes, hard-ground assistance and alternative methods where direct driving encounters refusal.
Pile extraction
The extractor kit supports removal of test, rejected or incorrectly installed piles, replacement works and temporary-foundation removal.
One Mobilisation. One Contractor Team.
Review drawings, test matrix and approved procedure
Mobilise equipment, technicians and HSE documentation
Install test piles and record driving observations
Perform driveability trials and predrill where required
Execute uplift, lateral and compression tests
Record load, holding time and displacement
Extract trial piles where required
Compile photographs, graphs and field observations
Issue the agreed technical POT report
Engineering-Ready POT Reporting
Depending on the client’s specification, reports can include test identification and coordinates, pile profile and embedment, ground and driving observations, equipment and calibration references, test direction, load increments, holding periods, displacement readings, maximum and residual displacement, load-displacement graphs, photographs, supplied acceptance criteria and conclusions.
Santana Construction + BayTex East Africa
Two African solar construction companies. One experienced management team.
Santana Construction Uganda works in partnership with BayTex East Africa, combining local operational capability with utility-scale PV construction experience developed across multiple African markets. Carles Santana serves as Director and Construction Manager within both organisations, supporting coordinated personnel, equipment, construction management and regional mobilisation.
Projects originally contracted through BayTex are clearly presented as partner experience and are not represented as Santana contracts.
Utility-Scale Solar Experience Across Africa
Solar Foundation Pull-Out Testing – Sadiola, Mali
Experience: BayTex East Africa – Santana Partner Service: Solar PV foundation pull-out testing Total tests: 96 Systems: ESET – 36; PVH – 20; FACTUIN – 40.
The campaign demonstrates practical experience preparing, executing and reporting a multi-system POT programme, including controlled load application, displacement recording, observations, photographs and technical reporting. Confidential results and proprietary acceptance criteria are not published.
Solar PV Foundation Testing – Kibali Gold Mine, DRC
Experience: BayTex East Africa – Santana Partner
Verified experience in pull-out, lateral and compression testing in remote African project conditions. The genuine photographs on this page show controlled load application and displacement measurement; confidential quantities and results are not published.
Kenya & Uganda
Eldosol & Radiant and Bamburi Cement PV in Kenya are shown as BayTex East Africa – Partner Experience. Ituka / West Nile demonstrates solar pile-installation experience in Uganda.
Southern Africa
Blanket Gold Mine, Zimbabwe, and Bolobedu tracker commissioning, South Africa, are shown as BayTex East Africa – Partner Experience.
Solar PV Pull-Out Testing in East Africa
Santana Construction Uganda, working together with specialist partner BayTex East Africa, provides PV foundation testing and pile-installation capability for utility-scale solar projects across East Africa. From our Uganda base, we can plan solar pull-out testing, PV pile testing, driveability trials, predrilling and solar piling mobilisation for Uganda, Kenya, Tanzania, Rwanda and Burundi, with DRC evaluated according to location and logistics.
Mobilisation Across Africa
Our operational base is in Uganda, with additional regional capability through BayTex East Africa. We can assess project mobilisation to Uganda, Kenya, Tanzania, Rwanda, Burundi, DRC, Zambia, Zimbabwe, Mozambique, Malawi, Gabon, Mali and other African markets. These are mobilisation territories, not claims of permanent offices.
Specialist Support for International Solar Companies
EPCs & tracker manufacturers
Local specialist subcontracting aligned with project drawings, test matrices, manufacturer procedures and international HSE expectations.
Developers, IPPs & consultants
Early-stage foundation testing, traceable field data and practical installation feedback for engineering review.
Mining & industrial clients
PV foundation and construction support for captive-power projects in demanding African environments.
Information Required for an RFQ
Company and project contact
Country, location and access information
Project capacity and expected mobilisation date
Tracker / structure manufacturer
Pile profiles and proposed embedment depths
Number of test piles and required tests
Test directions and maximum/design loads
POT procedure and test matrix
Pile and foundation drawings
Geotechnical report, BOQ/RFQ and KMZ where available
Frequently Asked Questions
What is a solar PV pile pull-out test?
A controlled field test applying uplift to a trial foundation pile while recording movement at defined load steps.
Why are pull-out tests required before solar pile installation?
They provide site-specific evidence for foundation validation, pile-profile selection and proposed embedment before production piling.
What does POT mean in solar construction?
POT means Pull-Out Test. A campaign may also include lateral, compression or inclined-load tests.
Who performs solar PV pull-out testing in Uganda?
Santana Construction Uganda, working with BayTex East Africa, provides test-pile installation, PV foundation testing and reporting from Uganda.
Who provides PV pile testing in East Africa?
Our combined team can assess mobilisation to Kenya, Tanzania, Rwanda, Burundi, DRC and neighbouring markets.
Can Santana install the test piles before POT?
Yes. One team can install trial piles, record driveability, perform specified tests and extract piles where required.
Can you perform lateral pile load testing?
Yes, when included in the approved procedure and after review of the test arrangement, loads and measuring equipment.
Can you perform compression testing?
Yes, subject to the specification, reaction arrangement, equipment capacity and site conditions.
Can you perform PV pile driveability tests?
Yes. ORTECO trial piling can record profile, target depth, driving time, refusal, deformation and field observations.
What happens if a solar pile encounters refusal?
The refusal is recorded and the approved procedure followed. Where authorised, auger predrilling can assist in difficult ground.
Can you extract test piles?
Yes. Our extractor kit can remove test or rejected piles when included in scope and technically feasible.
Do you provide POT reports?
Yes. Reports can include pile data, equipment, load steps, holding times, displacement readings, photographs, graphs and observations.
Can you follow a tracker manufacturer’s procedure?
Yes, after technical review of drawings, the test matrix, loads, holding periods and acceptance criteria.
Can you mobilise equipment to Kenya, Tanzania, Rwanda or DRC?
Yes, subject to logistics, permits, schedule, access and project scope.
What information is needed to quote a POT campaign?
Send the location, test quantity and directions, pile profile, loads, embedment, tracker manufacturer, specification, geotechnical information, mobilisation date, drawings and test matrix.
Request a Pull-Out Test / Piling Quotation
Send us your POT specification, pile drawings, test matrix and mobilisation requirements. Our construction team will review the equipment, personnel and field scope required.
Servicios de cimentaciones para plantas fotovoltaicas
Ensayos Pull-Out Test e Hincado de Pilotes Fotovoltaicos en África
Movilización local en África. Experiencia fotovoltaica internacional. Santana Construction Uganda, en colaboración con BayTex East Africa, ofrece campañas completas de hincado de pilotes de prueba, ensayos de hincabilidad, POT, perforación previa, extracción e informes de campo para EPC, promotores y fabricantes de seguidores solares.
Dirección: Carles Santana – Director y Construction Manager de ambas empresas
Base: Uganda / África Oriental
Servicios: POT, hincado de pilotes, hincabilidad, carga lateral, compresión, preperforación y extracción
Clientes: EPC, fabricantes de seguidores, promotores, IPP, consultores y minería
Campaña POT completa con un único equipo especialista
Los ensayos de arrancamiento y carga de pilotes permiten comprobar el comportamiento de las cimentaciones metálicas propuestas en las condiciones reales del terreno. Según el procedimiento aprobado por el cliente, podemos ejecutar ensayos de tracción vertical, carga lateral, compresión y carga inclinada, registrando cada incremento de carga, el tiempo de mantenimiento y el desplazamiento correspondiente.
Ensayos de cimentaciones
Ensayo de arrancamiento / tracción vertical
Ensayo de carga lateral
Ensayo de compresión
Ensayo inclinado cuando se especifique
Control de carga y desplazamiento
Ejecución de campo
Hincado de pilotes de prueba
Pruebas de hincabilidad
Perforación previa con barrena
Extracción y trabajos correctivos
Registros trazables e informe POT
Experiencia real en ensayos POT
BayTex East Africa – Experiencia del socio: proyecto solar de Kibali Mine, RDC. Las fotografías publicadas muestran montajes reales para ensayos de tracción, carga lateral y compresión, con aplicación controlada de carga y medición de desplazamientos. No se publican resultados confidenciales ni criterios de aceptación propietarios.
Hincabilidad, perforación previa y extracción
Pruebas de hincabilidad
Registro de profundidad, tiempo de hincado, rechazo, terreno difícil, deformaciones y observaciones de instalación.
Perforación con barrena
Agujeros piloto y apoyo en terrenos duros cuando el hincado directo encuentra rechazo.
Extracción de pilotes
Retirada de pilotes de prueba, rechazados o mal instalados, sustituciones y trabajos correctivos.
Una movilización. Un contratista. Una campaña completa.
Revisión del procedimiento, planos y matriz
Movilización de equipos y técnicos
Hincado de pilotes de prueba
Ensayos de hincabilidad y predrilling
Ensayos de tracción, lateral y compresión
Registro de carga y desplazamiento
Extracción cuando sea necesaria
Gráficas, fotografías y observaciones
Entrega del informe POT acordado
Informes POT preparados para revisión técnica
Según la especificación, el informe puede incluir identificación y coordenadas, perfil y empotramiento, observaciones del terreno y del hincado, equipos y calibraciones, dirección del ensayo, incrementos de carga, tiempos, desplazamientos, gráficas, registro fotográfico, criterios suministrados por el cliente y conclusiones.
Santana Construction + BayTex East Africa
Dos empresas africanas de construcción solar. Un equipo directivo con experiencia.
Santana Construction Uganda trabaja en colaboración con BayTex East Africa. Carles Santana es Director y Construction Manager en ambas organizaciones, facilitando la coordinación de personal, equipos, gestión de obra y movilización regional.
Los proyectos contratados originalmente por BayTex se identifican expresamente como experiencia del socio y no como contratos de Santana.
Experiencia solar de gran escala en África
Sadiola, Mali – 96 ensayos de cimentaciones solares
Experiencia: BayTex East Africa – Socio de Santana. Sistemas: ESET – 36; PVH – 20; FACTUIN – 40.
La campaña incluyó preparación, aplicación controlada de cargas, registro de desplazamientos, observaciones, fotografías e informe técnico.
Kibali Gold Mine, RDC – Ensayos de cimentaciones FV
Experiencia: BayTex East Africa – Socio de Santana. Experiencia verificada en tracción, carga lateral y compresión en condiciones remotas.
Ensayos Pull-Out Test Fotovoltaicos en África Oriental
Desde Uganda, Santana Construction Uganda y BayTex East Africa pueden estudiar movilizaciones a Kenia, Tanzania, Ruanda, Burundi, RDC y otros mercados africanos.
Movilización en África
Nuestra base operativa está en Uganda, con capacidad regional adicional mediante BayTex East Africa. Podemos estudiar la movilización a Uganda, Kenia, Tanzania, Ruanda, Burundi, RDC, Zambia, Zimbabue, Mozambique, Malawi, Gabón y Mali, además de otros mercados africanos. Estos países son zonas potenciales de movilización, no oficinas permanentes.
Preguntas frecuentes
¿Qué significa POT en una planta solar?
Significa Pull-Out Test: un ensayo de carga que mide la respuesta del pilote ante tracción y, cuando corresponda, cargas laterales, de compresión o inclinadas.
¿Podéis instalar y ensayar los pilotes?
Sí. Según el alcance y el terreno, un mismo equipo puede hincar, registrar hincabilidad, perforar, ensayar, extraer y preparar el informe.
¿Seguís procedimientos de fabricantes de seguidores?
Sí. La campaña se ejecuta según el procedimiento, planos, matriz, cargas, tiempos y criterios aprobados para el proyecto.
¿Trabajáis fuera de África Oriental?
Sí, sujeto a logística, permisos, programa y alcance. Envíenos la ubicación y especificación para evaluar la movilización.
¿Está planificando una planta fotovoltaica en África?
Envíenos el procedimiento POT, planos de pilotes, matriz de ensayos y requisitos de movilización.
